On certain projects, a physical model better explains the principles of what we are proposing and gives context to the size, mass and form.

The development of Dippon Lodge was a contemporary addition to a small 2 bedroom 1900 sq ft dwelling.

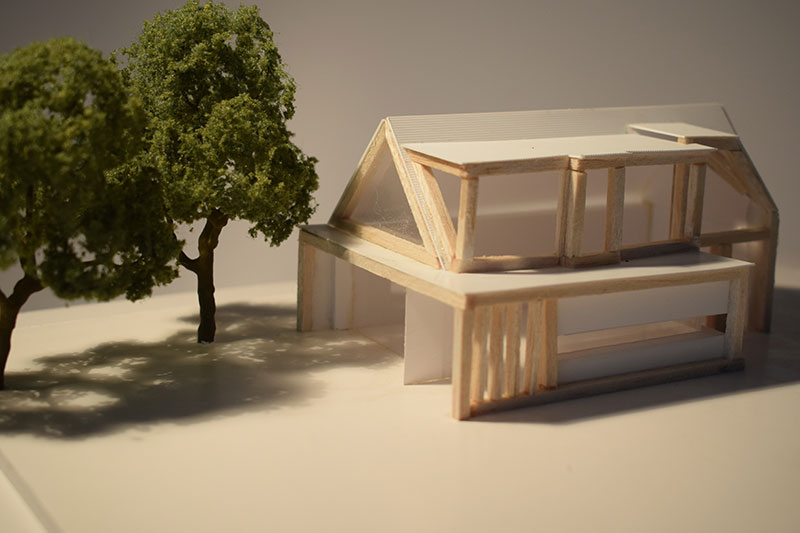

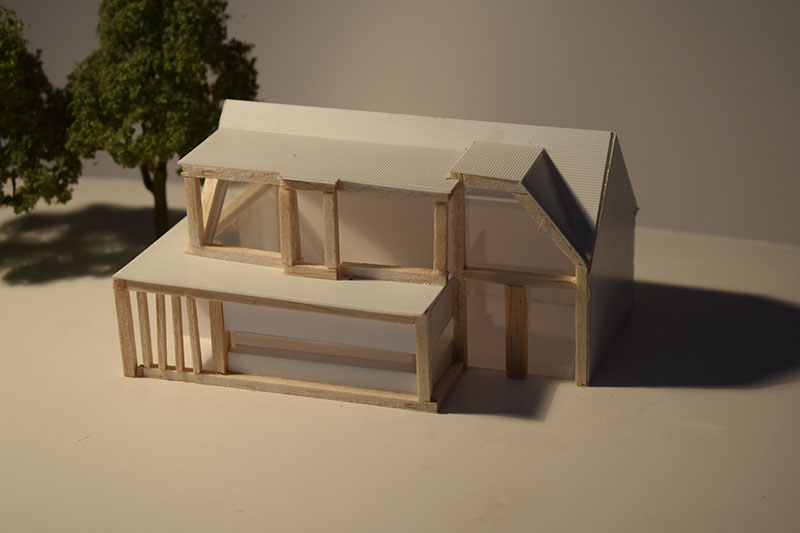

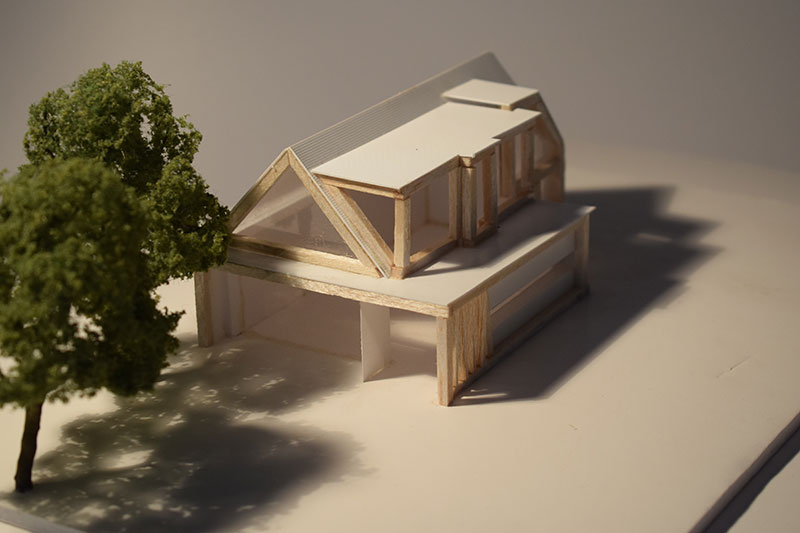

The principle of the extension was a series of expressed boxes added to create more space both on the ground and first floors. The model enabled our client to fully understand what we were trying to achieve. It also gave us the opportunity to see how the internal spaces would feel throughout the day by imitating the suns movement with the use of a directional light.

The model was not built to be 100% accurate and is a little rough around the edges but it served as a great representation of the ideas we had for the project which is due on site early 2017.
